Fun with NDepend, Part II: Creating Dependency Violation Warnings

Last time I gave a short overview over the features of NDepend. We know that NDepend can show a detailed dependency analysis your projects.  This time I show you how you can write CQL queries to find out certain dependency violations.

Creating Rules With NDepend

Creating Rules With NDepend

Basic Dependency Operators

The CQL language has a bunch of ‘dependency’ operators, like IsUsing, IsUsedBy, IsDirectlyUsing , Implements etc. Those let you find out if a method/type/assembly is using a certain other methods/types/namespaces. Such an operator has most if the time a companion-operator, like DepthOfIsUsing, DepthOfIsUsedBy etc. A ‘dependency-depth” operator tells you if something is directly used or is a transitive dependency. Here’s example to explain that. Take a look at this small piece of code:

Could not embed GitHub Gist 851675: API rate limit exceeded for 208.113.160.6. (But here's the good news: Authenticated requests get a higher rate limit. Check out the documentation for more details.)

Use the IsUsedBy-operator on it and we get this result:

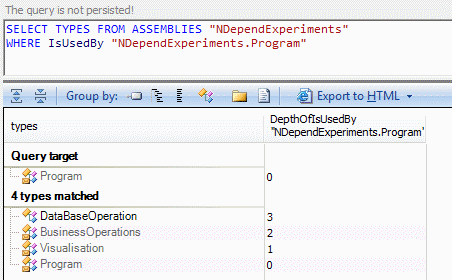

Is UsedBy operator

Is UsedBy operator

The DepthOfIsUsing tells us how directly an element is used. A value of 1 means that the code directly uses that element. In our example the Progam class directly uses the Visualisation class and hence the DepthOfIsUsing is one. The BusinessOperations is used by the Visualisation class, which is used by the Program class, therefore the depth is two and so on and so forth. The depth tells you over how many indirections something is used. This is very useful to filter out uninteresting relations. For example if you’re only interested in direct dependencies, then you can limit to a certain depth:

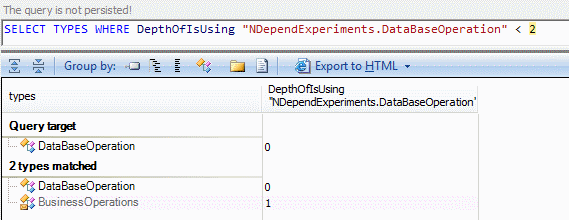

using depth

Using Depth

Update: Show Query Result as Depedency-Graph

This is quite a hidden feature: You can visualize results of a query as a dependency graph. We use the query from our example application. Run the query, then right-click on the header of the result and choose an visualization:

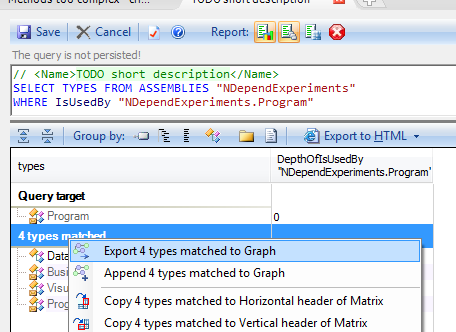

Show Query Result as Graph

Show Query Result as Graph

And the result:

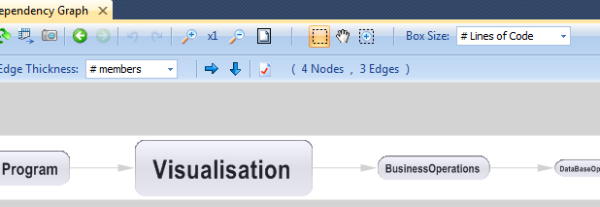

Graph of a Query Result

Graph of a Query Result

A Real World Use Case

Now for what can we use this? Well with this we can create our own warnings. Let’s say we have a larger application which has three layers:  The core-layer which contains stuff like database-connections, the business-logic layer which does all our complex logic and the presentation-layer which creates a nice user interface. Now we want to ensure that the presentation-layer never touches the database-stuff directly. For that we can  write a little rule to check it:

Dont use the database in views

Dont use the database in views

After than we run NDepend. It will discover violations of our rules and display it as warning:

Warning about the violations

Warning about the violations

And of course tell you the exact code location which violates the rule:

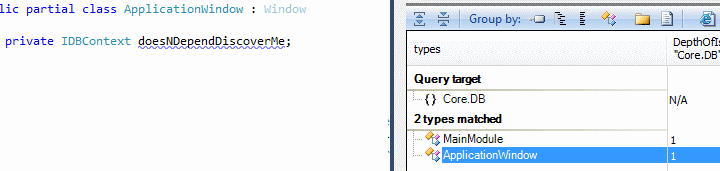

Ndepend found it

NDepend found it

Conclusion And Follow-Up

We’ve seen that we can use NDepend to write rules which enforce certain dependency rules. This allows us to spot quickly problematic usage of classes and interfaces in problematic places.

Next time I’ll try to integrate NDepend in my favorite continues build tool, TeamCity.
